The T-902 Hydrophone is an omnidirectional, broadband, low noise transducer. The two wire hydrophone contains its own preamp for long cable driving capabilities. The T-902 has a wide range of applications including underwater source measurements, broadband ship profiling measurements and marine biological activity monitoring. The T-902 is used with the Model 902 Acoustic Listening and Calibration System. |
 |
 |
Specifications |
|
| Dimensions: | 3.2 cm (1.25 in) dia. X 8.9 cm (3.5 in) length |
| Weight: | 7 gms (0.25 oz), less cable |
| Operating Depth: | 100 m |
| Temperature Range: | 0 to +50 deg C |
| Construction: | Neoprene Encapsulation |

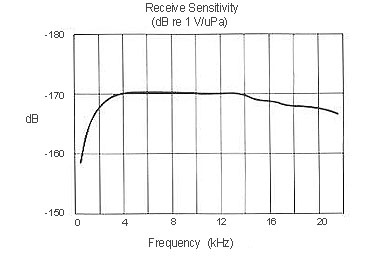

| Receiving Sensitivity: | -170 dB re 1 Volt/uPa |
| Frequency Range: | 20 Hz to 10 kHz |
| Directivity: | Horizontal - Omnidirectional Vertical - Omnidirectional |
| Load: | 100 ohm or greater |
| Power Requirement: | +8 to +15 VDC, 1.5ma max @ 9 VDC |
| Cable Length: | 15 meters (Standard) or more |
| Cable Type: | 2 conductor shielded |
|
|
|
|
|
|
|
|
